| Electrical | |
|---|---|
| average input power max (W) | 500 |
| bandwidth (MHz) | 20 |
| frequency range (MHz) | 138 to 158 |
| gain nominal (dBd) | 6 |
| grounding | All metal parts DC-grounded |
| impedance (Ω) | 50 |
| lightning protection | Lightning spike |

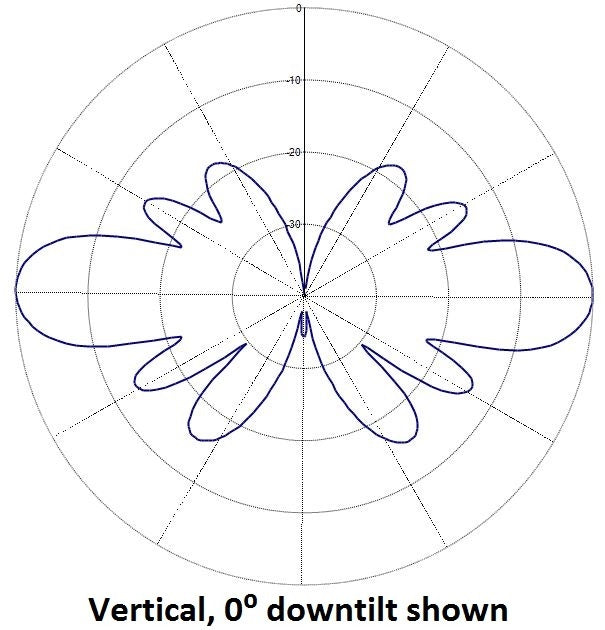

| pattern | Omni-directional |
| polarization | Vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 150 |
| depth (in) | 5 |
| length (in) | 248.5 |
| mounting configurations | Upright, inverted |
| radome material | Fiberglass (UV protected) |
| shipping dimensions (in) | 264 x 7 x 7 |
| weight (lbs) | 79 |
| width (in) | 5 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 1610 |
| lateral thrust 100 mph no ice | 208 |
| rated wind velocity no ice | 170 |
| temperature range (°C) | -40 to +60 |
| tip deflection 100 mph no ice | 2.2 |
