SD214-SF2P4(ZZZ)(DXX-YYY)

4 dipole, 8.5 dBd, offset pattern, low PIM, 138-174 MHz

Prix ​​habituel $0.00
/

Seulement 0 articles en stock !

• 4-bay dipole antenna that covers the 138-174 MHz band

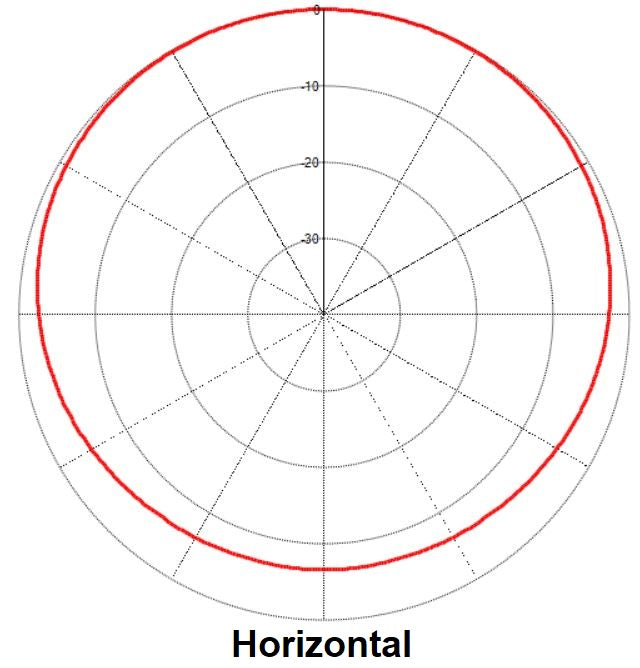

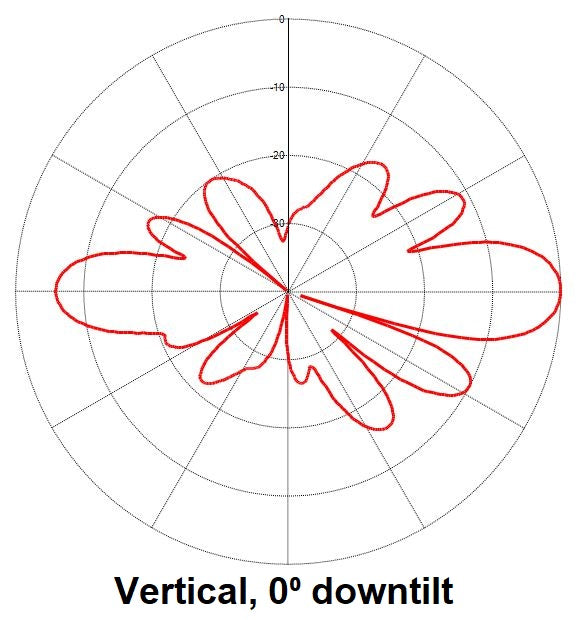

• High gain with an offset pattern
• PIM and PIP rated (optional) for modern LMR/PMR systems
• Available with a range of options to suit different applications

Electrical
average input power max (W) 300
bandwidth (MHz) 36
frequency range (MHz) 138 to 174
Mechanical
actual shipping weight (lbs) 90
depth (in) 3.5
length height (in) 240
Width (in) 23
Environmental
temperature range (°C) -40 to 60
