| Electrical | |
|---|---|
| average input power max (W) | 300 |
| connector | N-Male |
| electrical tilt available | 0,2,4,6,8, or 10 degrees |
| frequency range (MHz) | 138 to 174 |
| gain nominal (dBd) | 8.5 |
| horizontal beamwidth typ | 210 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

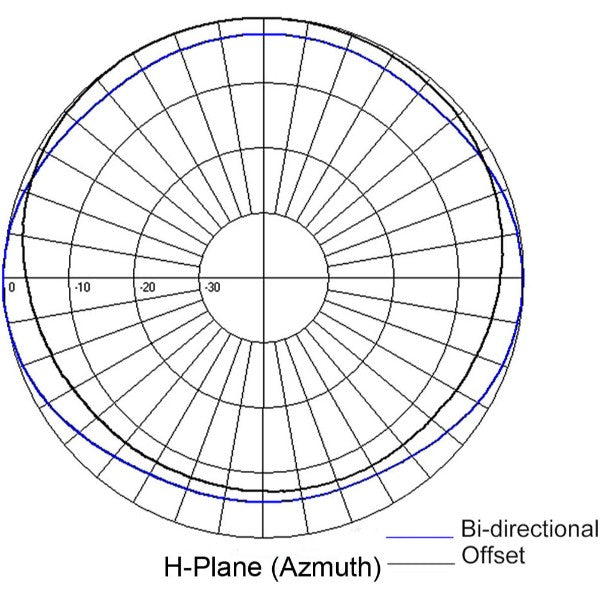

| pattern | Offset or Bi-directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 170 |
| base pipe diameter | 2.38 |
| base pipe material | aluminum |
| base pipe mounting length | 192 |
| depth (in) | 5.5 |
| length height (in) | 240 |
| mounting configurations | side mount |
| radiating element material | aluminum |
| shipping dimensions (in) | 245x12x48 |
| width (in) | 45.9 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 417 |
| lateral thrust 100 mph no ice | 185 |
| rated wind velocity no ice | 190 |
| temperature range (°C) | -40 to 60 |
SD214-HF2PASNM(D00S)-Spec-Sheet.pdf
