| Electrical | |
|---|---|
| average input power max (W) | 250 |
| bandwidth (MHz) | 35 |
| connector | N-Male |
| electrical tilt available | 0,2,4,6,8, or 10 degrees |
| frequency range (MHz) | 190 to 225 |
| front to back ratio typ | 9.5 |
| gain nominal (dBd) | 5.5 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

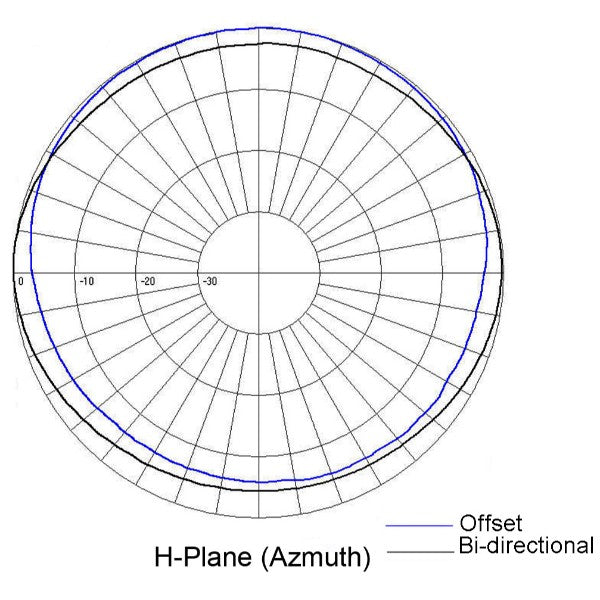

| pattern | Offset |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 30.5 |
| base pipe diameter | 2.375 |
| base pipe material | aluminum |
| base pipe mounting length | 65 |
| depth (in) | 3.5 |
| length height (in) | 75.25 |
| mounting configurations | Inverted |
| radiating element material | aluminum |
| shipping dimensions (in) | 80x25x4 |
| Width (in) | 18.5 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 78 |
| lateral thrust 100 mph no ice | 51 |
| rated wind velocity no ice | 235 |
| temperature range (°C) | -40 to 60 |
| tip deflection 100 mph no ice | 0.28 |
SD212-HF3P4SNM(D00I)-Spec-Sheet.pdf
