| Electrical | |
|---|---|
| average input power max (W) | 150 |
| bandwidth (MHz) | 62 |
| connector | 7/16 DIN-Female |
| electrical tilt available | 0,2,4,6,8, or 10 degrees |
| frequency range (MHz) | 450 to 512 |
| gain nominal (dBd) | 4.5 |
| horizontal beamwidth typ | 190 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

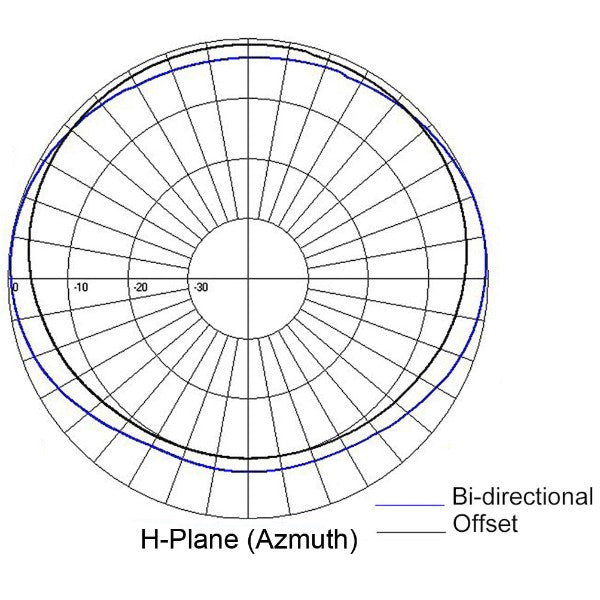

| pattern | Offset |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 20 |
| base pipe diameter | 1.9 |
| base pipe material | aluminum |
| base pipe mounting length | 24 |
| depth (in) | 3.5 |
| length height (in) | 83.13 |
| mounting configurations | Universal Mount |
| radiating element material | aluminum |
| shipping dimensions (in) | 89x21x6 |
| Width (in) | 11.4 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 103 |
| lateral thrust 100 mph no ice | 36.8 |
| rated wind velocity no ice | 250 |
| temperature range (°C) | -40 to 60 |
| tip deflection 100 mph no ice | 0.21 |
SD312-HF3P4LDF(D00)-Spec-Sheet.pdf
