| Electrical | |
|---|---|
| average input power max (W) | 200 |
| bandwidth (MHz) | 7 |
| connector | N-Male |
| frequency range (MHz) | 152 to 159 |
| front to back ratio typ | 17 |
| gain nominal (dBd) | 9.5 |
| horizontal beamwidth typ | 56 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

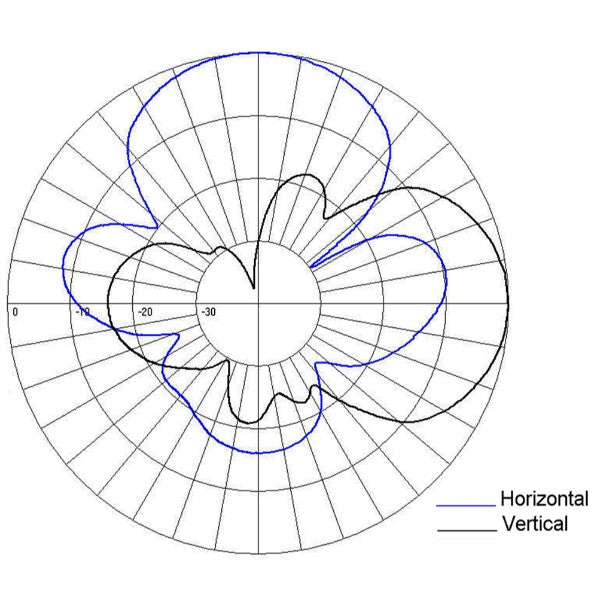

| pattern | Directional |
| polarization | vertical or horizontal |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 41 |
| base pipe diameter | 1.5 |
| depth (in) | 5.75 |
| length height (in) | 80.91 |
| mounting hardware included | Clamp001 |
| radiating element material | aluminum |
| reflector material | aluminum |
| shipping dimensions (in) | 127x8x7 |
| width (in) | 42.171 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 81 |
| lateral thrust 100 mph no ice | 31 |
| rated wind velocity no ice | 145 |
| temperature range (°C) | -40 to 60 |
SY206-SF2SNM(C)-Spec-Sheet.pdf
