| Electrical | |
|---|---|
| average input power max (W) | 500 |
| bandwidth (MHz) | 8 |
| connector | 7/16 DIN-Female |
| electrical tilt available | 0 degrees |
| frequency range (MHz) | 217.5 to 225.5 |
| gain nominal (dBd) | 6 |
| grounding | All metal parts DC-grounded |
| impedance (Ω) | 50 |

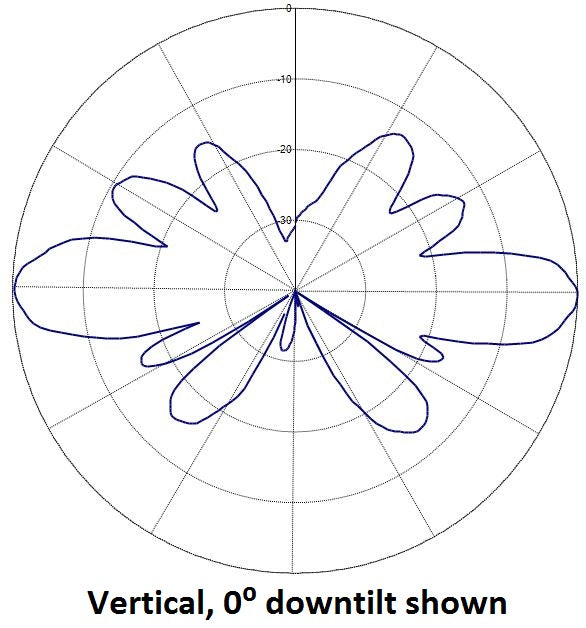

| pattern | Omni-directional |
| polarization | Vertical |
| Mechanical | |
|---|---|
| base pipe diameter | 2.88 |
| depth (in) | 2.88 |
| length (in) | 168.19 |
| mounting configurations | Upright |
| radome material | Fiberglass |
| Width (in) | 2.88 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 390 |
| lateral thrust 100 mph no ice | 73 |
| rated wind velocity no ice | 205 |
| temperature range (°C) | -40 to +60 |
| tip deflection 100 mph no ice | 1.9 |
SC246-SFXLDF_D00-F2215_-Spec-Sheet.pdf
