| Electrical | |
|---|---|
| average input power max (W) | 300 |
| bandwidth (MHz) | 35 |
| connector | N-Male |
| electrical tilt available | 0, 2, 4, or 6 degrees |
| frequency range (MHz) | 190 to 225 |
| gain nominal (dBd) | 11 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

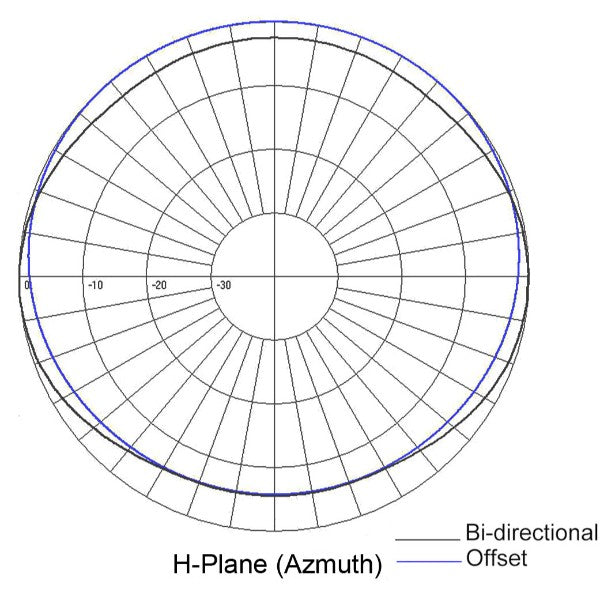

| pattern | Offset |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 141 |
| base pipe diameter | 2.38 |
| base pipe mounting length | 171 |
| depth (in) | 3.5 |
| length height (in) | 387 |

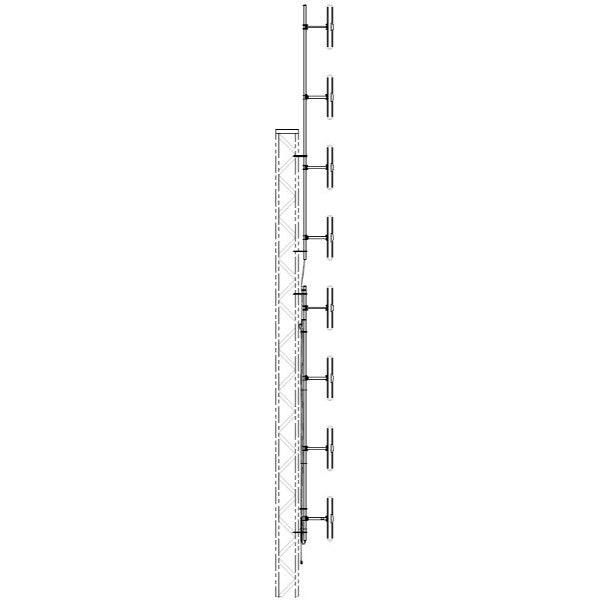

| mounting configurations | side mount |
| shipping dimensions (in) | 187x36x6 |
| Width (in) | 33 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 391 |
| lateral thrust 100 mph no ice | 257 |
| rated wind velocity no ice | 160 |
| temperature range (°C) | -40 to 60 |
| tip deflection 100 mph no ice | 0.84 |
SD218-SF3P2SNM(D00S)-Spec-Sheet.pdf
