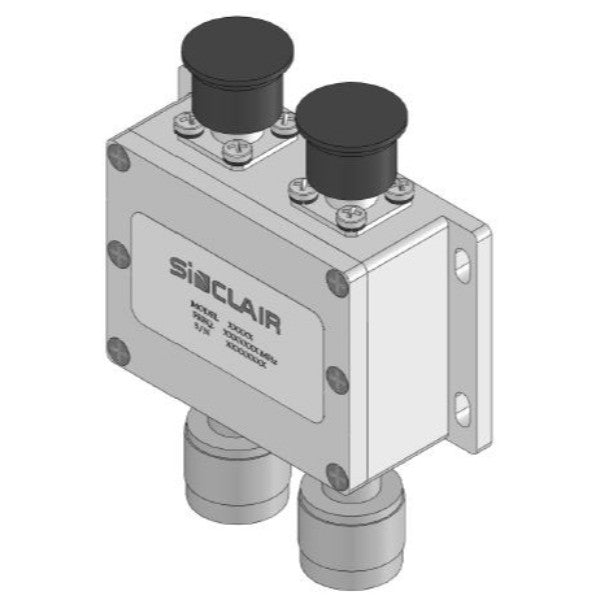

Coupler, 80/20 split, 30 MHz BW, 300 Watts, 150-180 MHz
Coupler, 80/20 split, 30 MHz BW, 300 Watts, 150-180 MHz

HH2141C-2-2

Coupler, 80/20 split, 30 MHz BW, 300 Watts, 150-180 MHz

$0.00
/
Nur 0 Artikel auf Lager!

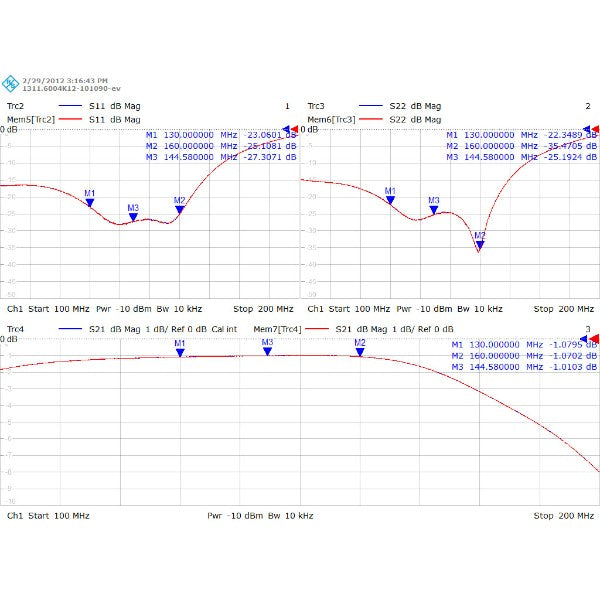

• Typ insertion loss of 1.0 +/- 0.1 dB and 7.4 +/- 0.4 dB
• 30 MHz Bandwidth
• 300 Watts power handling
Electrical
connectors N-Male and N-Female
frequency range (MHz) 150 to 180
impedance (Ω) 50
insertion loss max 1.1
insertion loss max (dB) 1.1
insertion loss max (dB) 1.1
isolation (min) (dB) 20
isolation min (dB) 20
power rating (W) 300
vswr max 1.25 : 1
Mechanical
depth (in) 2
length height (in) 1.15
shipping dimensions (in) 9x6x2.5
width (in) 3.12
Environmental
temperature range (°C) -30 to 60
