| Electrical | |
|---|---|
| average input power max (W) | 300 |
| connector | 7/16 DIN-Female |
| frequency range (MHz) | 210 to 230 |
| front to back ratio typ | 17 |
| gain nominal (dBd) | 4.5 |
| grounding | All metal parts DC-grounded |

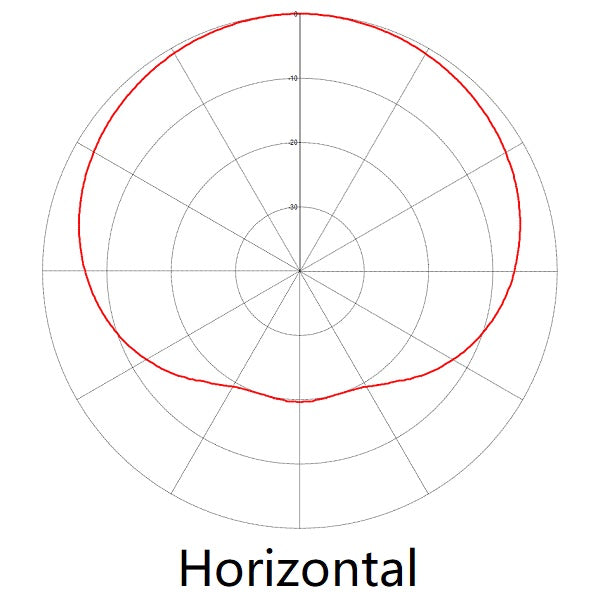

| horizontal beamwidth typ | 120 |
| impedance (Ω) | 50 |
| pattern | Directional |
| polarization | Vertical |
| VSWR max | 1.5 : 1 |
| Mechanical | |
|---|---|
| base pipe diameter | 1.9 |
| depth (in) | 17 |
| length height (in) | 42.5 |

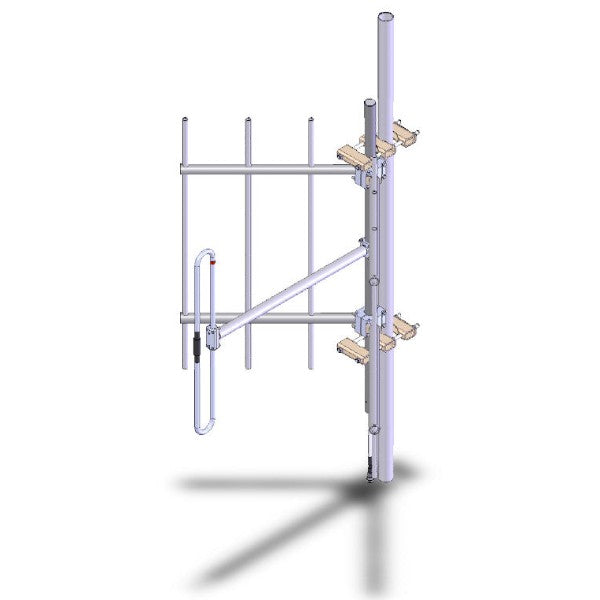

| mounting configurations | Side Mount |
| Width (in) | 32 |
| Environmental | |
|---|---|
| lateral thrust 100 mph no ice | 110 |
| rated wind velocity no ice | 195 |
| temperature range (°C) | -40 to 60 |
SD210R-SF2P120LDF_S_-Spec-Sheet.pdf
