| Electrical | |
|---|---|
| average input power max (W) | 500 |
| connector | 7/16 DIN-Female |
| frequency range (MHz) | 806 to 869 |
| gain nominal (dBd) | 2.5 |
| lightning protection | DC ground |

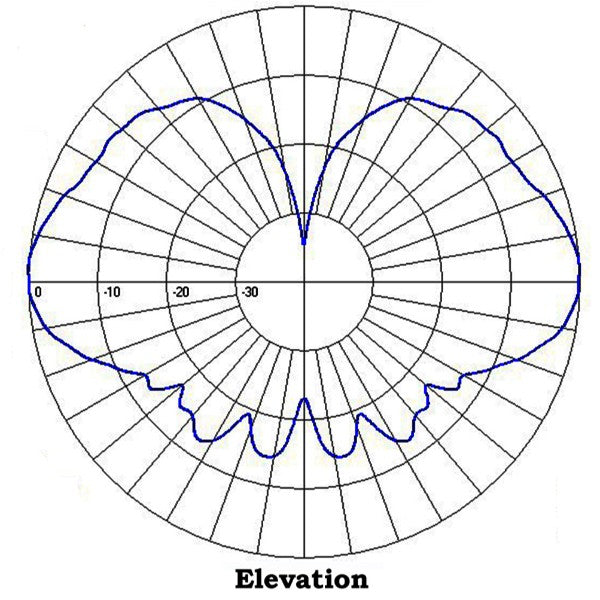

| pattern | Omni-directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 8.8 |
| base pipe diameter | 2.5 |
| base pipe material | aluminum |
| depth (in) | 2.5 |
| length height (in) | 40.83 |
| mounting configurations | upright, inverted |
| mounting hardware included | Clamp130 |
| radiating element material | aluminum |
| radome material | fiberglass (UV protected) |
| shipping dimensions (in) | 71x5x5 |
| Width (in) | 2.5 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 17.1 |
| lateral thrust 100 mph no ice | 16.7 |
| rated wind velocity no ice | 175 |
| temperature range (°C) | -40 to 60 |
