| Electrical | |
|---|---|
| average input power max (W) | 500 |
| bandwidth (MHz) | 20 |
| connector | 7/16 DIN-Female |
| electrical tilt available | 0, 2, 4, or 6 degrees |
| frequency range (MHz) | 148 to 168 |
| gain nominal (dBd) | 2.3 |
| impedance (Ω) | 50 |
| isolation port to port min | 35 |
| lightning protection | DC ground |
| number of ports | 2 |

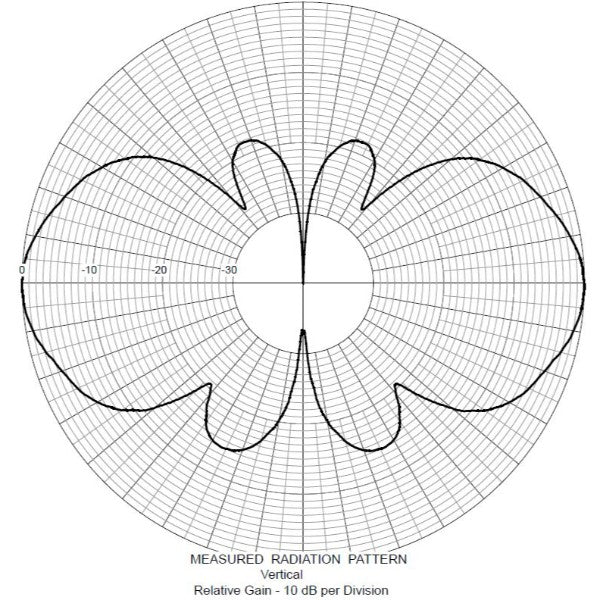

| pattern | Omni- directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 141 |
| base pipe diameter | 5 |
| base pipe material | aluminum |
| base pipe mounting length | 26 |
| depth (in) | 5 |
| length height (in) | 280 |
| mounting configurations | Universal Mount |
| radiating element material | brass |
| radome color | Light Blue |
| radome material | fiberglass (UV protected) |
| shipping dimensions (in) | 290x6x6 |
| Width (in) | 5 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 2177 |
| lateral thrust 100 mph no ice | 243 |
| rated wind velocity no ice | 155 |
| temperature range (°C) | -40 to 60 |
| tip deflection 100 mph no ice | 2.5 |
SC251D-HF3LDF(DXX-G3)-Spec-Sheet.pdf
