SD314-HF2P2LDF(D00S-ABK)

4 dipole, 7 dBd, bi-directional, low PIM, HD, ABK, 406-470 MHz

Regulärer Preis $0.00
/

Nur 0 Artikel auf Lager!
• Industry-leading -150dBc PIM rating
• 7 dBd gain with bi-directional pattern
• Heavy duty wind ratings, 200 W power handling
• Black anodized and side mount
Electrical
average input power max (W) 200
bandwidth (MHz) 64
connector 7/16 DIN-Female
electrical tilt available 0,2,4,6,8,or 10 degrees
frequency range (MHz) 406 to 470
gain nominal (dBd) 7
impedance (Ω) 50
lightning protection DC ground

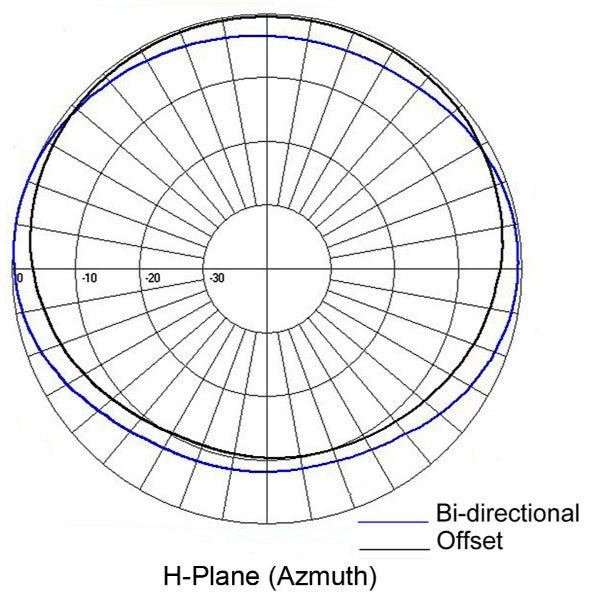

pattern Bi-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 40
base pipe diameter 1.9
base pipe material aluminum
base pipe mounting length 84
depth (in) 3.5
finish anodize (black)
length height (in) 96
mounting configurations side mount
radiating element material aluminum
shipping dimensions (in) 101x4x20
Width (in) 18
Environmental
bending moment 100 mph no ice 99
lateral thrust 100 mph no ice 60
rated wind velocity no ice 230
temperature range (°C) -40 to 60
