Yagi Ant, 5.5 dBd, center mount, 138-144 MHz
Yagi Ant, 5.5 dBd, center mount, 138-144 MHz

SY203-SF1SNM(C)

Yagi Ant, 5.5 dBd, center mount, 138-144 MHz

正常价格 $0.00
/

只有 0 件商品有库存!

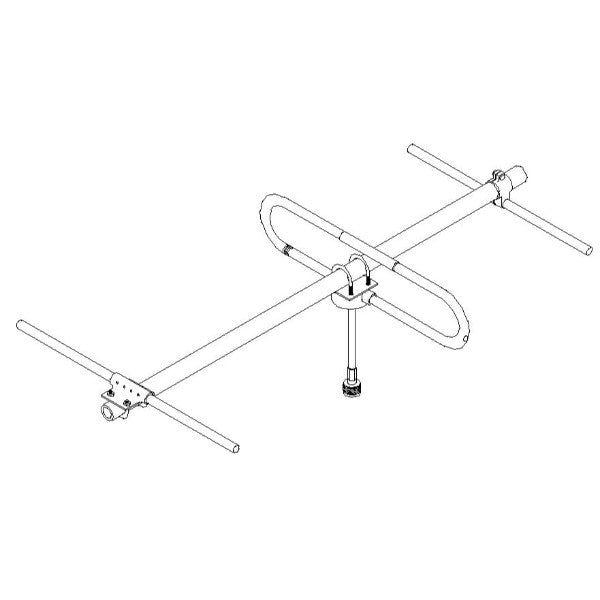

• Rugged 3-element yagi, 5.5 dBd gain
• Designed for medium gain applications
• Center-boom mounting
Electrical
average input power max (W) 200
bandwidth (MHz) 6
connector N-Male
frequency range (MHz) 138 to 144
front to back ratio typ 12
gain nominal (dBd) 5.5
horizontal beamwidth typ 87
impedance (Ω) 50
lightning protection DC ground
pattern Directional
polarization vertical or horizontal
Mechanical
actual shipping weight (lbs) 15
depth (in) 6.5
length height (in) 40.1
mounting hardware included Clamp001
radiating element material aluminum
reflector material aluminum
shipping dimensions (in) 47x6x18
Width (in) 42
Environmental
bending moment 100 mph no ice 8.1
lateral thrust 100 mph no ice 29.5
rated wind velocity no ice 150
