| Electrical | |
|---|---|
| average input power max (W) | 250 |
| bandwidth (MHz) | 20 |
| connector | N-Male |
| frequency range (MHz) | 410 to 430 |
| front to back ratio typ | 18 |
| gain nominal (dBd) | 15 |
| horizontal beamwidth typ | 18 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

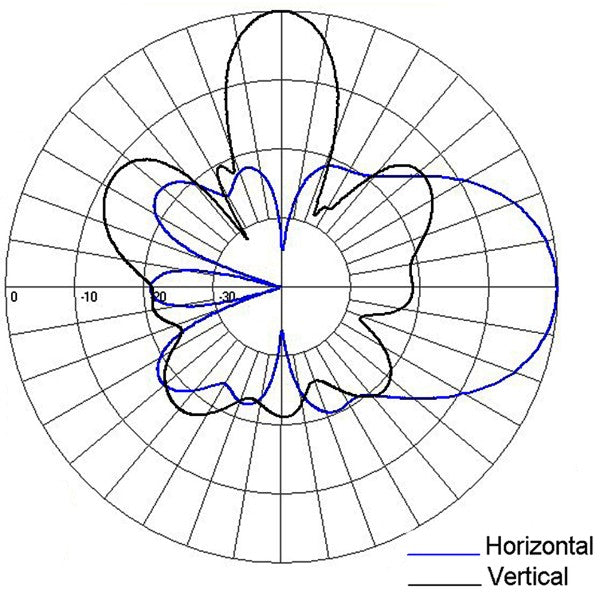

| pattern | Directional |
| polarization | vertical or horizontal |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 43 |
| depth (in) | 37 |
| length height (in) | 82 |
| mounting configurations | upright, inverted |
| mounting hardware included | Clamp004 |
| radiating element material | aluminum |
| shipping dimensions (in) | 56x9x50 |
| width (in) | 41 |
| Environmental | |
|---|---|
| lateral thrust 100 mph no ice | 427 |
| operating humidity range (%) | 0 to 95 |
| rated wind velocity no ice | 100 |
| temperature range (°C) | -40 to 60 |
