| Electrical | |
|---|---|
| average input power max (W) | 250 |
| bandwidth (MHz) | 202 |
| connector | N-Female |
| frequency range (MHz) | 694-896 |
| front to back ratio typ | 20 |
| gain nominal (dBd) | 8.5 |
| horizontal beamwidth typ | 60 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

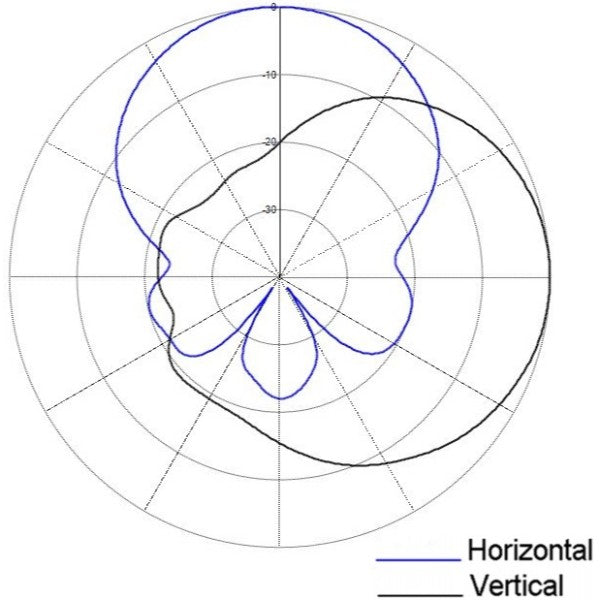

| pattern | Directional |
| polarization | vertical or horizontal |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 10 |
| depth (in) | 5.27 |
| length height (in) | 12 |
| radiating element material | Printed Circuit Board |
| radome material | ASA plastic |
| reflector material | aluminum |
| shipping dimensions (in) | 12x41x6 |
| width (in) | 12 |
| Environmental | |
|---|---|
| lateral thrust 100 mph no ice | 34 |
| rated wind velocity no ice | 100 |
| temperature range (°C) | -40 to +60 |
SP470-SF5P60SNF-Spec-Sheet.pdf
