| Electrical | |
|---|---|
| average input power max (W) | 300 |
| connector | 7/16 DIN-Female |
| electrical tilt available | 0,2,4,6,8, or 10 degrees |
| frequency range (MHz) | 138 to 174 |
| gain nominal (dBd) | 5 |
| horizontal beamwidth typ | 210 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

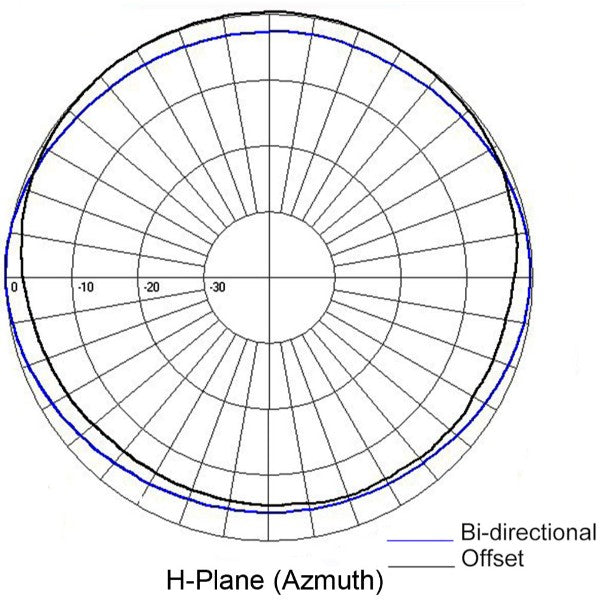

| pattern | Offset |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 38 |
| base pipe diameter | 1.9 |
| base pipe material | aluminum |
| depth (in) | 3.5 |
| length height (in) | 92 |
| mounting configurations | Inverted |
| radiating element material | aluminum |
| shipping dimensions (in) | 123x24x4 |
| width (in) | 21.5 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 95 |
| lateral thrust 100 mph no ice | 57 |
| rated wind velocity no ice | 225 |
| temperature range (°C) | -40 to 60 |
SD212-SF2P4LDF(D00I)-Spec-Sheet.pdf
