SD212-SF1P4S(XX)(D00)

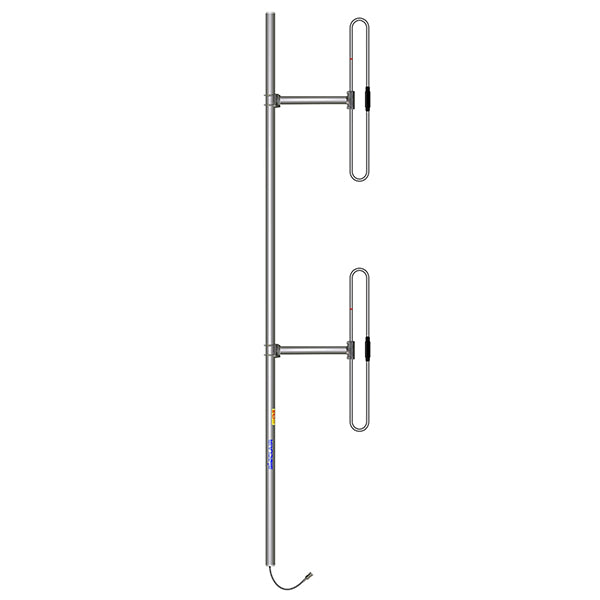

2 dipole, 5.5 dBd, offset, 118-138 MHz

$0.00
/
只有 0 件商品有库存！
• Covers the entire 118-138 MHz band
• 5.5 dBd gain with offset pattern
• 300 Watt power handling
• Can be top or side mounted
Electrical
average input power max (W) 300
bandwidth (MHz) 20
frequency range (MHz) 118 to 138
gain nominal (dBd) 5.5
Grounding All metal parts DC-grounded

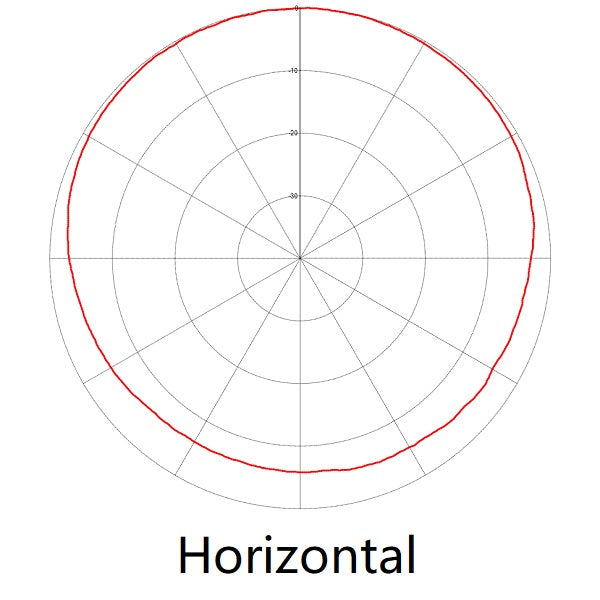

horizontal beamwidth typ 210
impedance (Ω) 50

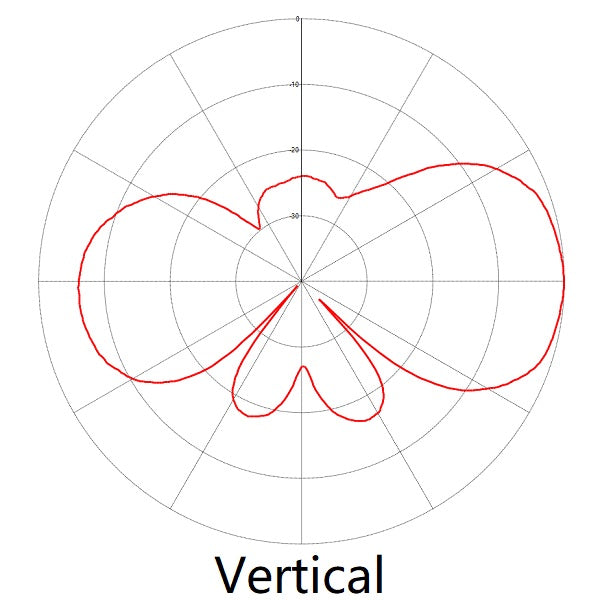

pattern Offset
polarization Vertical
Mechanical
actual shipping weight (lbs) 38
base pipe diameter 1.9
base pipe material Aluminum
base pipe mounting length 36
depth (in) 3.5
length height (in) 144
mounting configurations Top mount or side mount
radiating element material Aluminum
shipping dimensions (in) 148 x 28 x 6
Width (in) 25.5
Environmental
bending moment 100 mph no ice 256
lateral thrust 100 mph no ice 79
rated wind velocity no ice 140
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 1.4
