| Electrical | |
|---|---|
| average input power max (W) | 250 |
| bandwidth (MHz) | 7 |
| connector | N-Male |
| frequency range (MHz) | 152 to 159 |
| front to back ratio typ | 17 |
| gain nominal (dBd) | 9.5 |
| horizontal beamwidth vert pol | 60 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

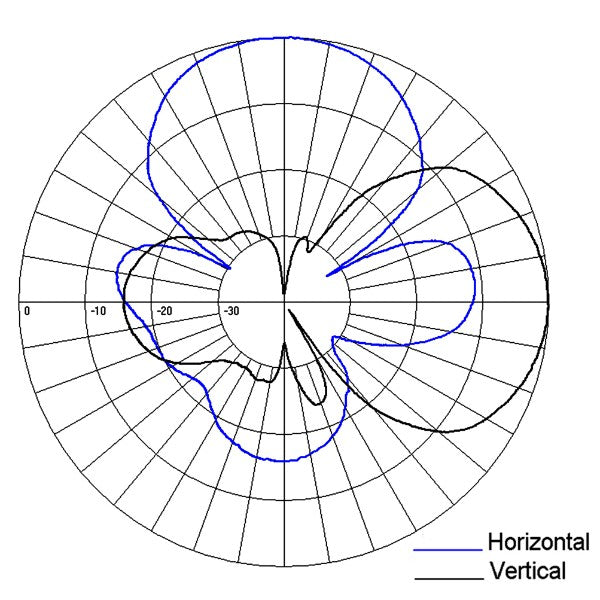

| pattern | Directional |
| polarization | vertical or horizontal |
| Mechanical | |
|---|---|
| finish | MIL-A-8625F Type III Class 2, black anodizing |
| length height (in) | 106 |

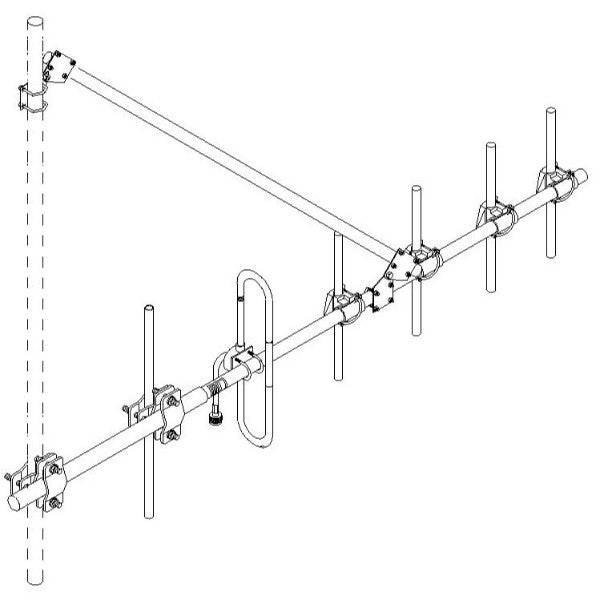

| mounting hardware included | Clamp017 and Clamp064 |
| radiating element material | aluminum |
| reflector material | aluminum |
| width (in) | 39.4 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 441 |
| lateral thrust 100 mph no ice | 83 |
| rated wind velocity no ice | 140 |
| temperature range (°C) | -40 to 60 |
SY206-HF2SNM(E-MABK)-Spec-Sheet.pdf
