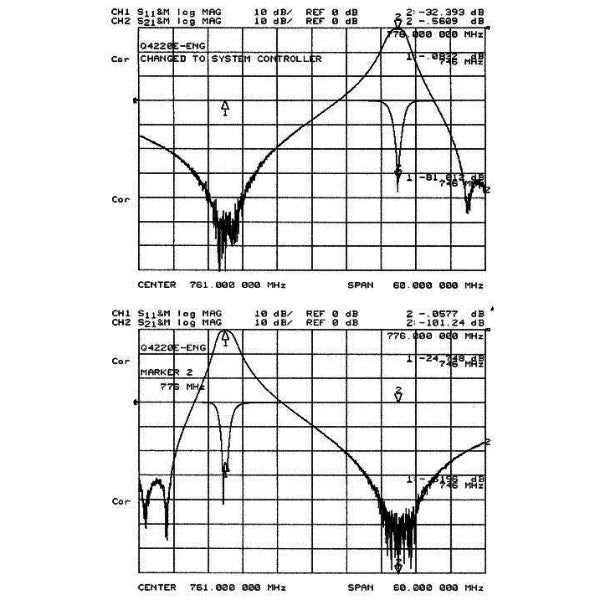

| Electrical | |
|---|---|
| average input power max (W) | 150 |
| connectors | N-Female |
| frequency range (MHz) | 746 to 806 |
| impedance (Ω) | 50 |
| isolation (min) (dB) | 75 |
| number of cavities rx side | 2 |
| number of cavities tx side | 2 |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 20 |
| cavity height | 5.25 |
| cavity height (in) | 5.25 |
| cavity width or diameter | 3.95 |
| cavity width or diameter (in) | 3.95 |
| coupling loops material | copper |
| depth (in) | 8.25 |
| end plates material | aluminum |
| finish | chromate conversion |
| inner conductor material | silver plated brass |
| length height (in) | 4.17 |
| mounting configurations | 19 inch rack |
| outer conductor material | aluminum |
| shipping dimensions (in) | 18.75x6.375x11.5 |
| tuning rod material | invar |
| width (in) | 19 |
| Environmental | |
|---|---|
| temperature range (°C) | -30 to 60 |
