| Electrical | |
|---|---|
| average input power max (W) | 500 |
| bandwidth (MHz) | 123 |
| connector | 7/16 DIN-Female |
| electrical tilt available | 0-10 degrees in 1? increments |
| frequency range (MHz) | 746 to 869 |
| gain nominal (dBd) | 6 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |
| number of ports | 2 |

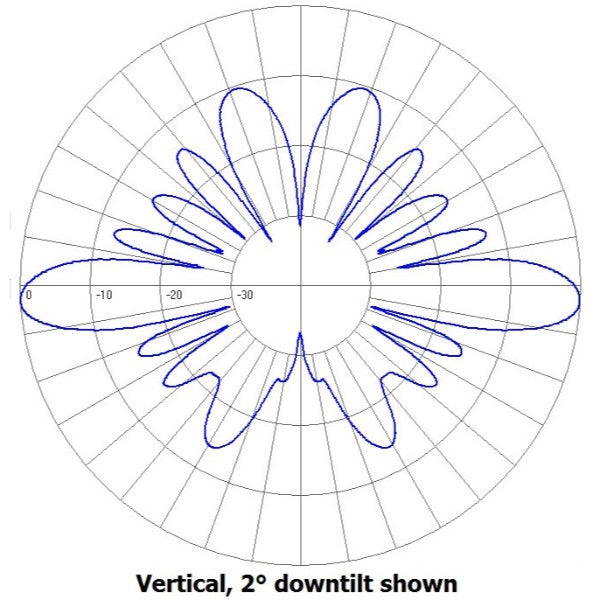

| pattern | Omni-directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 71 |
| base pipe diameter | 3.5 |
| base pipe material | aluminum |
| base pipe mounting length | 30 |
| depth (in) | 3.5 |
| length height (in) | 189.5 |
| mounting configurations | upright |
| radiating element material | copper |
| radome material | fiberglass (UV protected) |
| shipping dimensions (in) | 202x6x6 |
| Width (in) | 3.5 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 717 |
| lateral thrust 100 mph no ice | 119 |
| rated wind velocity no ice | 170 |
| temperature range (°C) | -40 to 60 |
| tip deflection 100 mph no ice | 2.1 |
SC432D-HF6LDF(D2-I40-G6-E5749)-Spec-Sheet.pdf
