4 dipole, 7 dBd, low PIM, bi-directional, HD, 138-174 MHz
4 dipole, 7 dBd, low PIM, bi-directional, HD, 138-174 MHz

SD214-HF2P2LNM(D00B)

4 dipole, 7 dBd, low PIM, bi-directional, HD, 138-174 MHz

Regular price $0.00
/

Only 0 items in stock!
• -138 dBc PIM rating, covering the entire 138-174 MHz frequency range
• 7.0 dBd gain with bi-directional pattern
• Top mount, Heavy duty with 300W power handling
Electrical
average input power max (W) 300
bandwidth (MHz) 36
connector N-Male
electrical tilt available 0,2,4,6, or 8 degrees
frequency range (MHz) 138 to 174
gain nominal (dBd) 7
impedance (Ω) 50
lightning protection DC ground

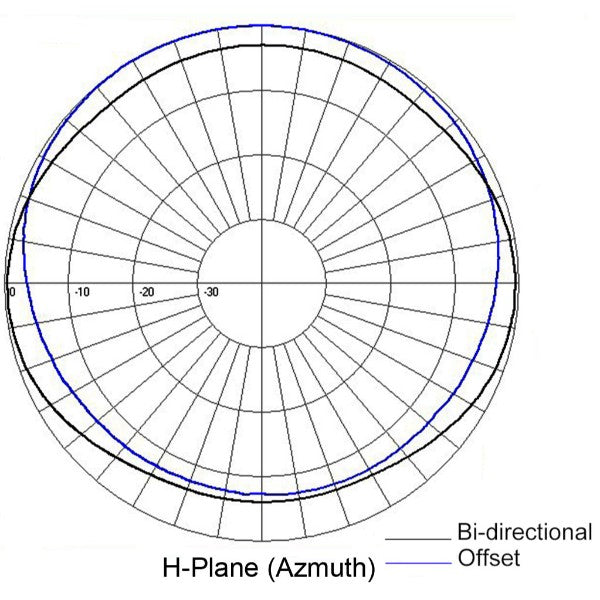

pattern Bi-directional
polarization vertical
Mechanical
actual shipping weight (lbs) 159
base pipe diameter 4
base pipe material aluminum
depth (in) 5.8
length height (in) 240
mounting configurations top mount
radiating element material aluminum
shipping dimensions (in) 246x48x6
Width (in) 43.69
Environmental
bending moment 100 mph no ice 1331
lateral thrust 100 mph no ice 234
rated wind velocity no ice 195
temperature range (°C) -40 to 60
tip deflection 100 mph no ice 0.5
