| Electrical | |
|---|---|
| average input power max (W) | 75 |
| bandwidth (MHz) | 62 |
| connector | 7/16 DIN-Female |
| frequency range (MHz) | 450 to 512 |
| gain nominal (dBd) | 2 |
| horizontal beamwidth typ | 210 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

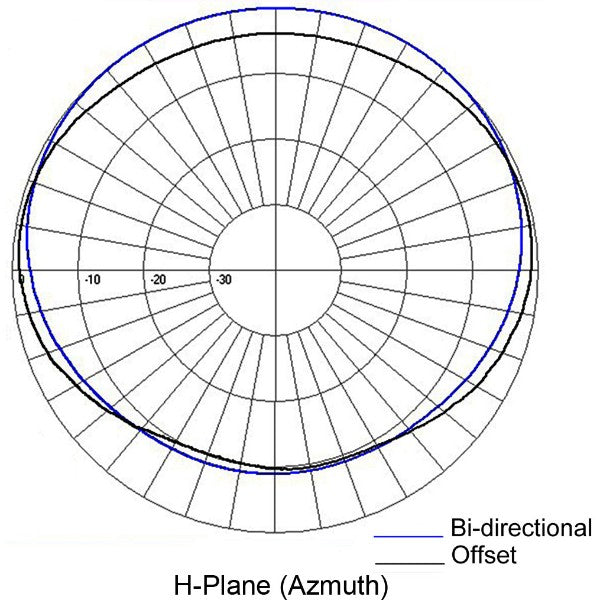

| pattern | Offset |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 12.5 |
| base pipe diameter | 1.9 |
| base pipe material | aluminum |
| base pipe mounting length | 18 |
| depth (in) | 3.5 |
| finish | anodize (black) |
| length height (in) | 48.13 |
| mounting configurations | Universal Mount |
| radiating element material | aluminum |
| shipping dimensions (in) | 63x19x4 |
| Width (in) | 11.84 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 26.3 |
| lateral thrust 100 mph no ice | 21 |
| rated wind velocity no ice | 265 |
| temperature range (°C) | -40 to 60 |
| tip deflection 100 mph no ice | 0.03 |
