| Electrical | |
|---|---|
| average input power max (W) | 300 |
| bandwidth (MHz) | 36 |
| frequency range (MHz) | 138 to 174 |

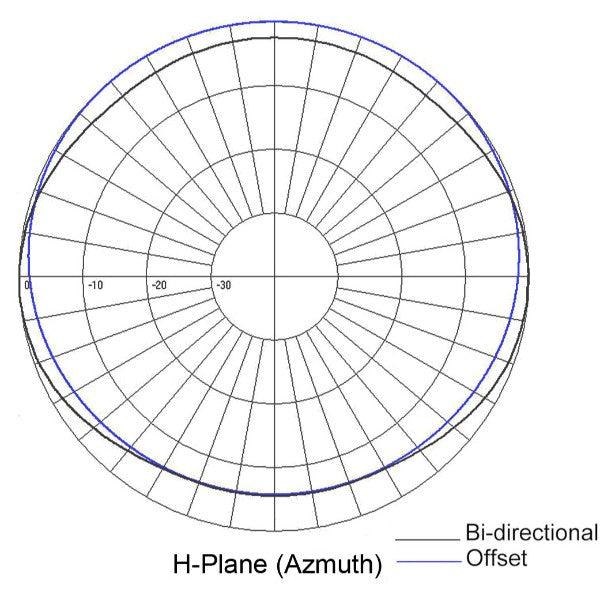

| pattern | Bi-directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| base pipe diameter | 2.38 |
| depth (in) | 4 |
| length height (in) | 410 |
| Width (in) | 42.6 |
| Environmental | |
|---|---|
| rated wind velocity no ice | 155 |
| temperature range (°C) | -40 to 60 |
