| Electrical | |
|---|---|
| average input power max (W) | 350 |
| bandwidth (MHz) | 7 |
| connector | N-Male |
| frequency range (MHz) | 157 to 164 |
| front to back ratio typ | 17 |
| gain nominal (dBd) | 14.5 |

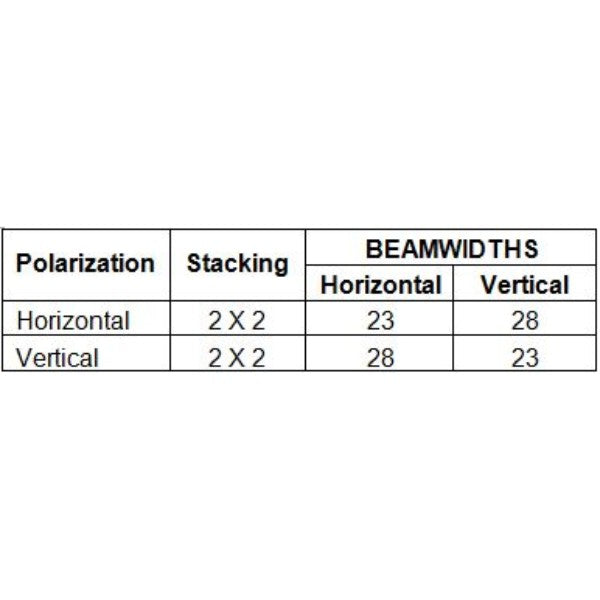

| horizontal beamwidth typ | 28 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

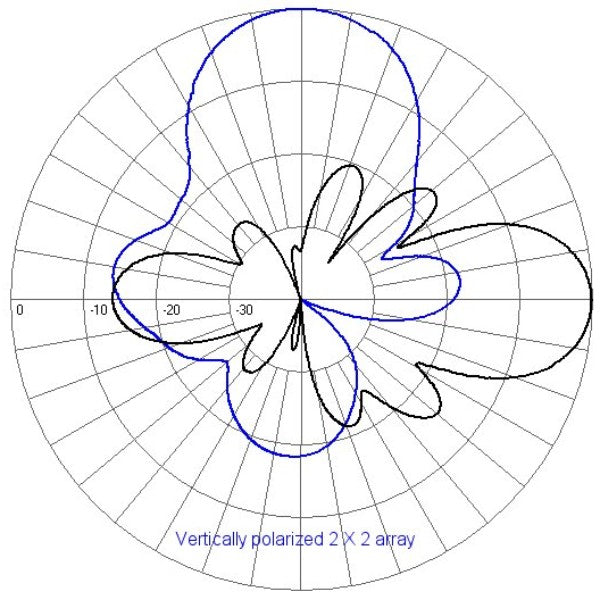

| pattern | Directional |
| polarization | vertical or horizontal |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 60 |
| base pipe diameter | 1.5 |
| depth (in) | 49.75 |
| length height (in) | 73.4 |
| radiating element material | aluminum |
| shipping dimensions (in) | 85x14x7 |
| width (in) | 109.4 |
| Environmental | |
|---|---|
| lateral thrust 100 mph no ice | 112 |
| rated radial ice | 0.5 |
| rated wind velocity no ice | 165 |
| survival wind velocity no ice | 175 |
| temperature range (°C) | -40 to 60 |
SY2064-SF3SNM(C)-Spec-Sheet.pdf
