| Electrical | |
|---|---|
| average input power max (W) | 200 |
| bandwidth (MHz) | 6 |
| connector | N-Male |
| frequency range (MHz) | 143 to 149 |
| front to back ratio typ | 12 to 17 |
| gain nominal (dBd) | 5.5 |
| horizontal beamwidth typ | 87 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

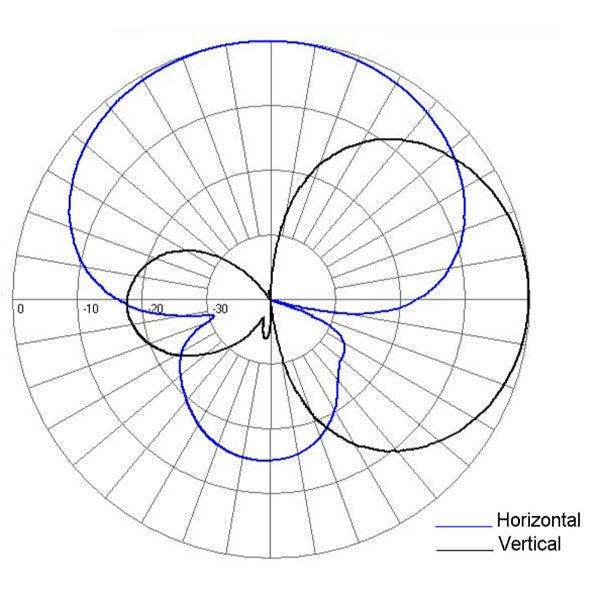

| pattern | Directional |
| polarization | vertical or horizontal |
| vswr typ | 1.5:1 |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 10 |

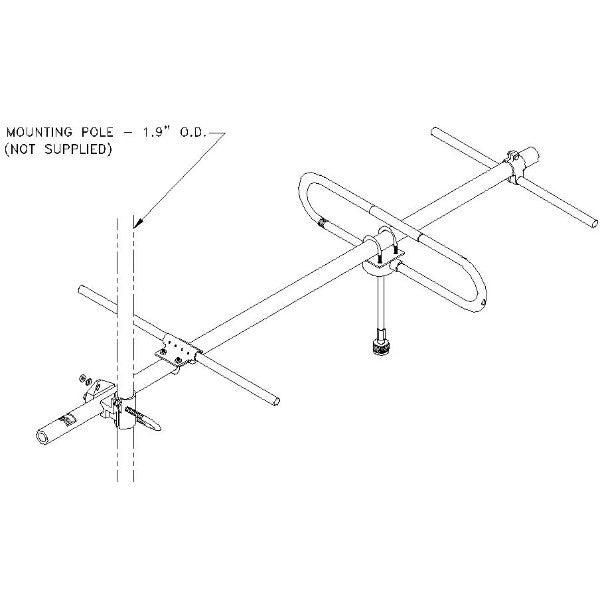

| boom diameter | 1.5 |
| depth (in) | 6.5 |
| length height (in) | 75.3 |
| mounting hardware included | Clamp001 |
| shipping dimensions (in) | 85x60x6 |
| width (in) | 42 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 126 |
| lateral thrust 100 mph no ice | 38.7 |
| rated wind velocity no ice | 135 |
| temperature range (°C) | -40 to +60 |
SY203-SF2SNM(E)-Spec-Sheet.pdf
