| Electrical | |
|---|---|
| average input power max (W) | 250 |
| connector | UHF-Female |
| frequency range (MHz) | 138 to 174 |
| gain nominal (dBd) | 2.5 |
| lightning protection | DC ground |

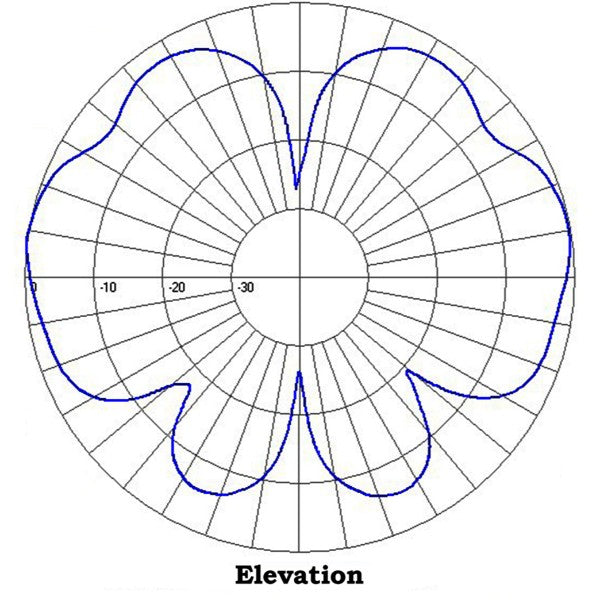

| pattern | Omni-directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 15 |
| base pipe diameter | 1.5 |
| base pipe material | aluminum |
| length height (in) | 128 |
| mounting hardware included | Clamp135 |
| radiating element material | aluminum |
| shipping dimensions (in) | 73x5x6 |
| width (in) | 58 |
| Environmental | |
|---|---|
| bending moment 100 mph no ice | 224 |
| lateral thrust 100 mph no ice | 65 |
| rated wind velocity no ice | 125 |
| temperature range (°C) | -40 to 60 |
SG217-SF2SUF-Spec-Sheet.pdf
