| Electrical | |
|---|---|
| average input power max (W) | 100 |
| bandwidth (MHz) | 200 |
| connector | N-Female |
| frequency range (MHz) | 800 to 1000 |
| front to back ratio typ | 25 |
| gain nominal (dBd) | 8 |

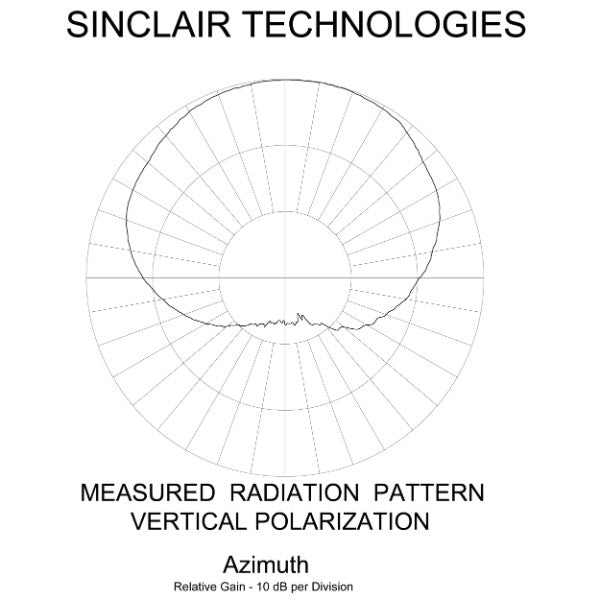

| horizontal beamwidth typ | 90 |
| impedance (Ω) | 50 |
| lightning protection | DC ground |

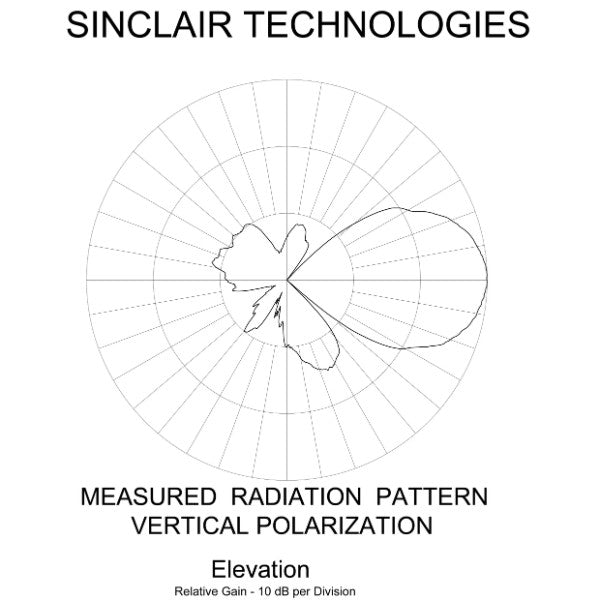

| pattern | Directional |
| polarization | vertical |
| Mechanical | |
|---|---|
| depth (in) | 8.5 |
| length height (in) | 22.5 |
| mounting configurations | universal |
| mounting hardware included | Clamp167 |
| radiating element material | prntd circuit bd |
| radome material | ABS (white) |
| shipping dimensions (in) | 12x16x37 |
| width (in) | 2.88 |
| Environmental | |
|---|---|
| lateral thrust 100 mph no ice | 56 |
| rated wind velocity no ice | 100 |
| temperature range (°C) | -40 to 60 |
