| Electrical | |
|---|---|
| average input power max (W) | 250 |
| connector | N-Male |
| frequency range (MHz) | 130 to 150 |
| front to back ratio typ | 30 |
| gain nominal (dBd) | 10 |
| horizontal beamwidth typ | 50 |
| lightning protection | DC ground |

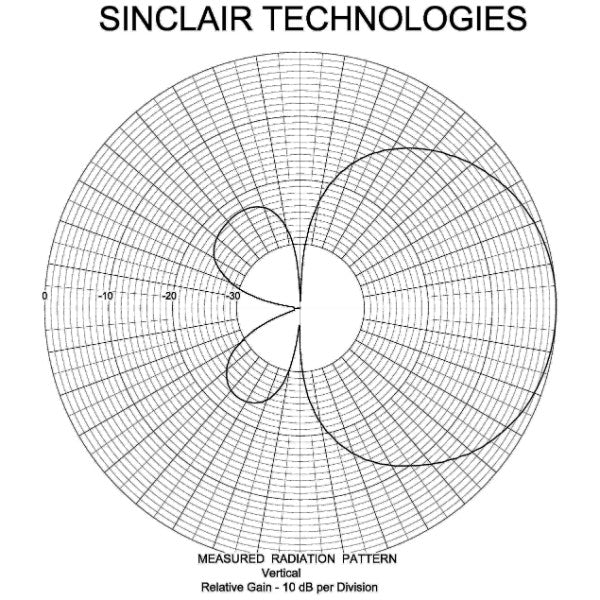

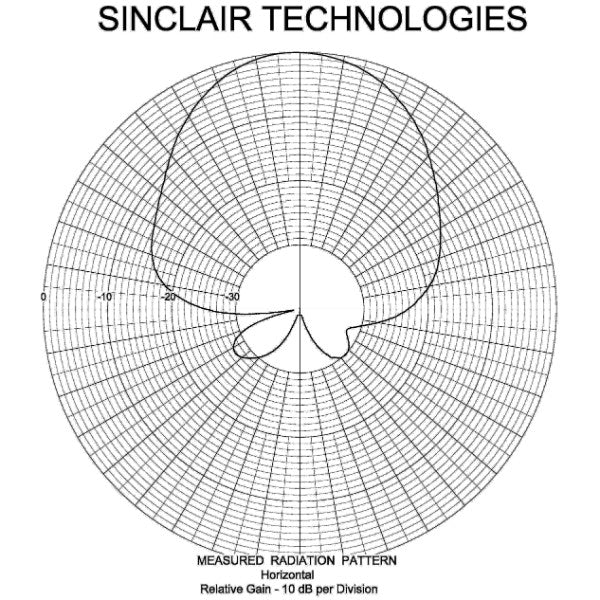

| pattern | Directional |
| polarization | vertical or horizontal |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 166 |
| depth (in) | 66 |
| length height (in) | 85 |
| mounting hardware included | Clamp004 |
| shipping dimensions (in) | 120x6x15 |
| width (in) | 136 |
| Environmental | |
|---|---|
| lateral thrust 100 mph no ice | 490 |
| rated wind velocity no ice | 135 |
| temperature range (°C) | -40 to 60 |
SV228-SF1SNM-Spec-Sheet.pdf
